282403-1
Manufacturer:
TE Connectivity
Mfr.Part #:
282403-1
Datasheet:
Description:

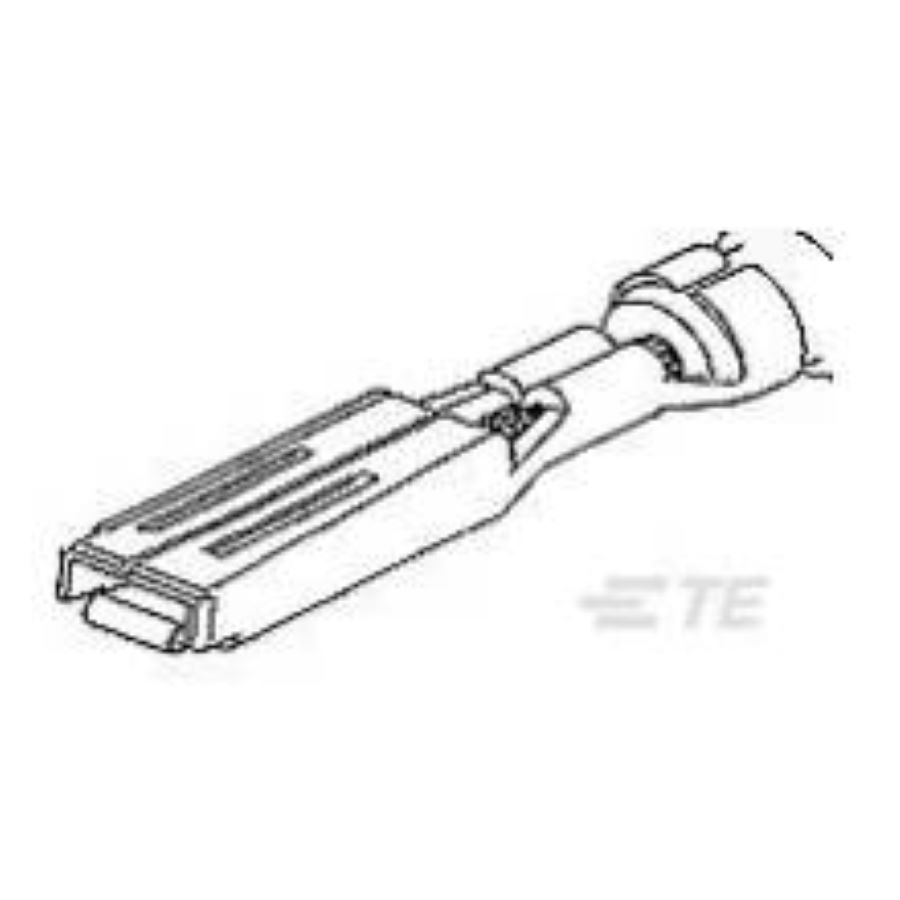

Automotive Connectors Cable Female 22 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 16.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 1 |
| Height | 4.7 mm |
| Depth | 4.8 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Ratings | IP67 |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, CuSn, Tin |
| Number of Terminals | 1 |
| Current Rating | 6 A |
| Max Current Rating | 14 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Connector, Power |
| Wire/Cable Gauge | 20 AWG |
| Number of Ports | 1 |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 1.6 mm |
| Contact Gender | Female |
| Mating Tab Width | 1.5 mm |
| Tab Thickness | 800 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | Yes |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 22 AWG to 20 AWG |
Stock: 36684
Distributors
pcbx
pcbxUnit Price$0.12460
Ext.Price$0.12460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12460 | $0.12460 |
| 10 | $0.06230 | $0.62300 |
| 50 | $0.05611 | $2.80550 |
| 100 | $0.05054 | $5.05400 |
| 500 | $0.04483 | $22.41500 |
| 1000 | $0.03977 | $39.77000 |
| 3000 | $0.03487 | $104.61000 |
| 5000 | $0.03058 | $152.90000 |
